THE UNIVERSITY OF BRITISH COLUMBIA

Physics 108 MIDTERM - 7 March 2003

SOLUTIONS

Jess H. Brewer

time: 50 minutes

1.

QUICKIES   [10 marks each - 60 total]

(a)

Under what circumstances would the entropy of a system decrease with the addition of energy, and what could you say about the temperature of such a system?
ANSWER: In order for there to be less ways to redistribute more energy, there must be some limit to how much energy the system can hold. (For instance, the system of N spins in a magnetic field.) Then the options must get more limited when that limit is approached. Such a system has a negative slope of the entropy as a function of energy, which means a negative inverse temperature and in turn a negative temperature (which, as we all know, is hotter than even infinite temperature).

(b)

Charges of +Q and -2Q are located as shown:

$+Q \; \bullet$ $\bullet \, -2Q$


A point where the electric field could equal zero is located (encircle your choice)

	(ii) between the two charges
(iii) to the right of the -2Q charge	(iv) nowhere

(c)

Conducting Sphere with an Off-Centre Cavity:

A solid conducting sphere of radius R has a spherical cavity of radius R/2 just touching one side, as shown. In the exact centre of the cavity is a point charge Q. Describe in detail the electric field as a function of position

i.

in the cavity   where $\vec{\mbox{\boldmath$r$\unboldmath }}$ is the position relative to the centre of the cavity. That is, just as if the conductor were completely removed.

ii.

in the conductor   (as always).

iii.

outside the big sphere   where $\vec{\mbox{\boldmath$R$\unboldmath }}$ is the position relative to the centre of the big sphere. That is, just as if the charge were moved to the centre of the big sphere and then the conductor were completely removed.

(d)

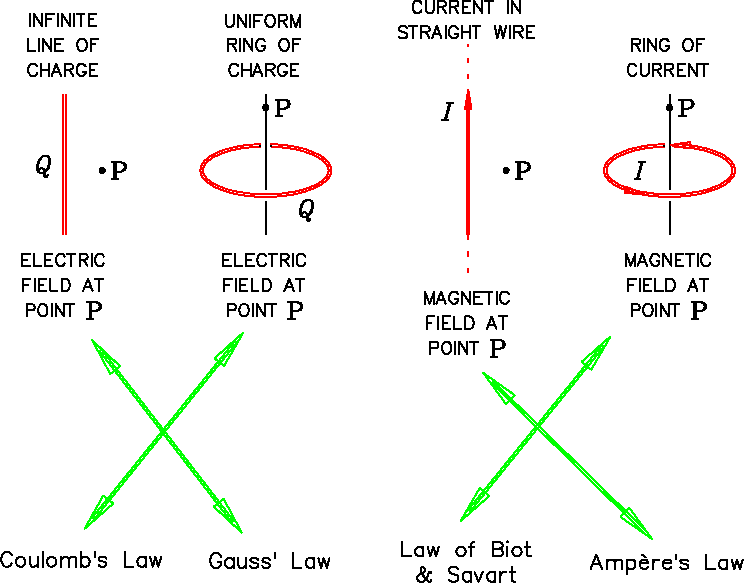

Shown below are four types of calculation problems and four ``Laws'' of Electricity and Magnetism. Match up (with connecting lines) each problem with the Law you should use to solve it with.

(e)

Mean Thermal Charge on a Shorted Capacitor:

The charge Q on any shorted capacitor will exhibit thermal fluctuations. If a 1 F capacitor is in thermal equilibrium at a temperature of 300 K, what is its root mean square charge $Q_{rms} = \sqrt{\langle Q^2 \rangle}$ ?   ANSWER: The energy stored in a charged capacitor is given by $E = {1\over2}CV^2 = Q^2/2C$, so Q is a ``degree of freedom'' (like v_x) and has an associated mean thermal energy $\langle E \rangle = \langle Q^2 \rangle /2C = k_{_{\rm B}} T/2$. Thus $\langle Q^2 \rangle = C k_{_{\rm B}} T$. With C=1 F, T=300 K and $k_{_{\rm B}} = 1.3807 \times 10^{-23}$ J/K, this gives $\langle Q^2 \rangle = 0.4142 \times 10^{-20}$ and  .

(f)

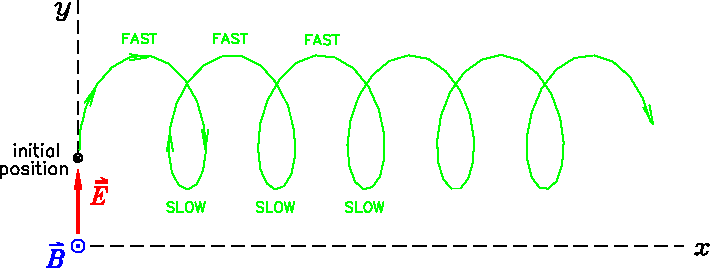

A proton is initially at rest in a uniform magnetic field out of the page. A uniform electric field is then applied in the +y direction, perpendicular to the magnetic field. Describe the subsequent motion of the proton qualitatively, using a simple sketch and a few words.   ANSWER: Initially the charge accelerates in the y direction (up); but as soon as it picks up some speed it starts to be bent to the right (x) by the magnetic field. Its direction is eventually reversed by this curvature and then it starts to slow down again until it goes around a bend again at the ``slow end'' and repeats the cycle. In the process it has drifted a bit to the right; this drift continues indefinitely. Some ``drift chambers'' use this method to collect the charge from ionization by elementary particles.

Does the proton ever move into or out of the page? Explain.   The initial velocity is zero and all accelerations are in the plane of the paper.

2.

Not a Simple Circuit   [20 marks]

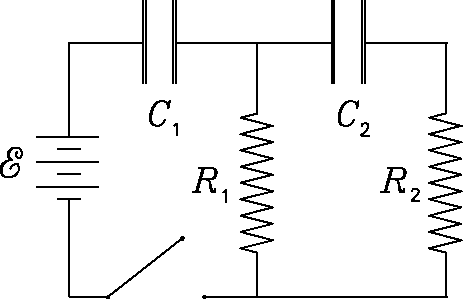

Two identical 0.01 F capacitors and two identical 100 $\Omega$ resistors are used with a 1 V battery ${\cal E}$ to make the circuit shown. The capacitors are initially uncharged. Describe what happens after the switch is closed at t=0. (You need not solve equations. Sketches are nice.)   ANSWER: Initially, C₁ and C₂ are like ``shorts'' so the current flows equally through R<sub>1</sub> and R<sub>2</sub> in parallel. Both currents add to the charge buildup on C<sub>1</sub>; so the charge on C<sub>2</sub> initially builds up half as fast as on C<sub>1</sub>. Later, as C<sub>1</sub> approaches its ``fully charged'' state ( $Q_1 \to C {\cal E}$) and the current decreases, C₂ reaches a state of ``balance'' and the charge Q<sub>2</sub> on C<sub>2</sub> goes through a maximum, after which it starts to discharge through the two resistors. (At that point the current in the right side reverses direction.) Eventually C<sub>1</sub> is fully charged to $C {\cal E}$ and acts like an ``open circuit'' while C₂ is completely discharged and all the currents die away. The time scale for these events is on the order of the time constant RC = 1 s.

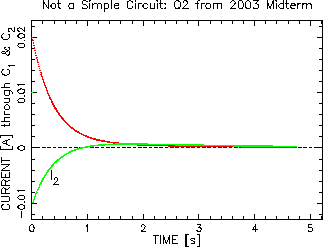

For those who want to see the actual time dependences, here are some plots calculated numerically:

3.

Composite Conductor   [20 marks]

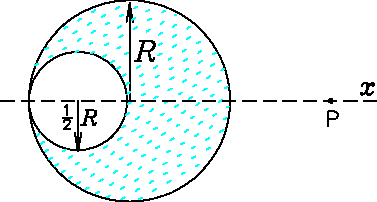

A long cylindrical conductor (a wire), viewed in cross-section at right, carries a uniform current density out of the page except in the off-centre cylindrical hole where the metal has been removed. The radius of the hole is half the radius R of the wire and the hole's central axis is located its R/2 to the left of the central axis of the wire, as shown. If R = 1 cm and the wire carries a net current of 1 A, calculate the resultant magnetic field at a position P on the x axis 1 cm to the right of the wire's right edge.

(a)

[5 marks] Explain how you plan to solve this problem.   ANSWER: Treat the wire as a superposition of an intact cylinder (without the hole) carrying a current I₀ plus a smaller, off-centre cylinder (the hole) carrying a current I₁ in the opposite direction. The resultant field is the superposition of the fields due to those two components.

(b)

[15 marks] Do it.   ANSWER: The area of the hole is 1/4 that of the whole wire, so the actual current I is only 3/4 of I₀, the current that the intact wire would be carrying at the same current density. Thus I₀ = 4I/3 and I₁ = - I/3. Both components produce a vertical (on this page) magnetic field at P, the first upward (in the same direction as the R arrow on the diagram) and the other downward. The two fields are given simply by Ampère's Law for a long cylindrically symmetric current distribution (outside the conductor):

$$B_0 = {\mu_0 I_0 \over 2 \pi} \cdot {1 \over (R + R)} = {4\ . . . . . . \left[ \mu_0 I \over 2 \pi R \right] \left( 1 \over 2 \right)$$

$$B_1 = {\mu_0 I_1 \over 2 \pi} \cdot {1 \over (R + R + {R \ove . . . . . . \left[ \mu_0 I \over 2 \pi R \right] \left( 2 \over 5 \right)$$

$$B = {1\over3} \left[ \mu_0 I \over 2 \pi R \right] \left( 2 . . . . . . } \times 1 \over 15 \times 2 \!\! \not{\pi} \times 10^{-2} }$$

giving  . (The direction has already been specified.)
