Activation clock

Library

Events

Description

This block is a Super Block constructed by feeding back the output of an event delay block into its input event port. The unique output of this block generates a regular train of events.

Dialog Box

Set Clock block parameters
Period	0.1
Init time	0.1

• Period: scalar. One over the frequency of the clock. Period is the time that separates two output events.
• Init time: scalar. Starting date. if negative the clock never starts.

Default properties

• always active: no
• direct-feedthrough: no
• zero-crossing: no
• mode: no
• number/sizes of inputs: 0 /
• number/sizes of outputs: 0 /
• number/sizes of activation inputs: 0 /
• number/sizes of activation outputs: 1 / 1
• continuous-time state: no
• discrete-time state: no
• name of computational function: csuper

Interfacing function

scilab/macros/scicos_blocks/sources/CLOCK_f.sci

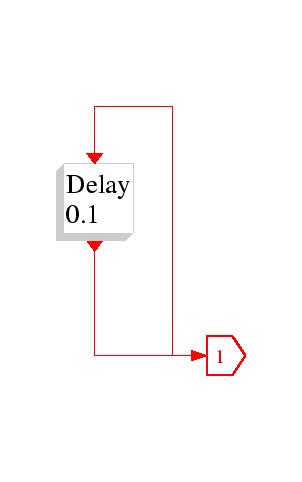

Compiled Super Block content
