Frequency division

Library

Events

Description

One out of every n incoming events gets though. So if the input is connected to an event clock, the output behaves as an event clock but with frequency divided by n.

Dialog Box

Set frequency division block parameters
Phase (0 to division factor -1)	0
Division factor	3

• Phase : staring value of the counter
• Division factor: the count is done modulo this value

Default properties

• always active: no
• direct-feedthrough: no
• zero-crossing: no
• mode: no
• number/sizes of inputs: 0 /
• number/sizes of outputs: 0 /
• number/sizes of activation inputs: 1 / 1
• number/sizes of activation outputs: 1 / 1
• continuous-time state: no
• discrete-time state: no
• name of computational function: csuper

Interfacing function

scilab/macros/scicos_blocks/events/freq_div.sci

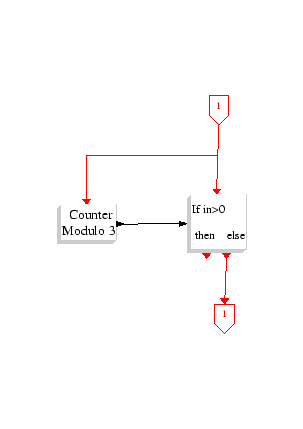

Compiled Super Block content
